✅ Compatibility

• Make: Lombardini (Kohler) / Arctic Cat
• Application: Lombardini diesel engines on Hatz and industrial applications
• OEM / Cross Reference Part Numbers:
  • Bosch: 0001109009
  • Lester: 18365
• Fits Lombardini Diesel Engines:
  • Lombardini 7LD665F (1982–1992)
  • Lombardini 7LD740F (1992–2002)
  • Lombardini 8LD740.2 (1992–2002)
  • Lombardini 9LD561.2 / 9LD561.2L (1992–2002)
  • Lombardini 9LD625.2 (1987–1992)
  • Lombardini 904 / 914 (1995–2005)
  • Lombardini L20 (1995–2005)
• Also Fits:
  • Arctic Cat 700 Diesel ATV (2007–2008) — Lombardini diesel engine
• Note: Verify your engine model, year, and existing starter part number before ordering. Contact us with your engine serial for fitment confirmation.

🔧 Product Highlights

• Direct OEM Replacement: Drop-in fit for Lombardini diesel engine applications — matches original Bosch PMGR 12V / 9-tooth CW, 1.6kW, 2-bolt 10mm unthreaded mount specifications
• Bosch OEM Starter — Original Equipment Supplier for Lombardini Diesel Engines: Bosch is the original equipment supplier for the Lombardini 7LD / 8LD / 9LD / 904 / 914 / L20 diesel engine starter motors — the 0001109009 is the Bosch OEM reference for these applications
• Lombardini (Kohler) — Italy’s Leading Small Industrial Diesel Engine Brand: Lombardini, now a Kohler brand, is one of Europe’s most respected small industrial diesel engine manufacturers — widely used in industrial equipment, agricultural machinery, generator sets, construction equipment, and specialty vehicles. The 7LD / 8LD / 9LD / 904 / 914 / L20 series covers Lombardini’s core industrial diesel lineup from the 1980s through the 2000s
• Also Fits Arctic Cat 700 Diesel ATV: This starter also covers the Arctic Cat 700 Diesel ATV (2007–2008) — one of the few diesel-powered ATVs ever sold in North America, using the Lombardini diesel engine
• Restores Reliable Engine Cranking: Corrects no-crank, slow cranking, and starter engagement failure on Lombardini diesel engine applications

📦 What's Included

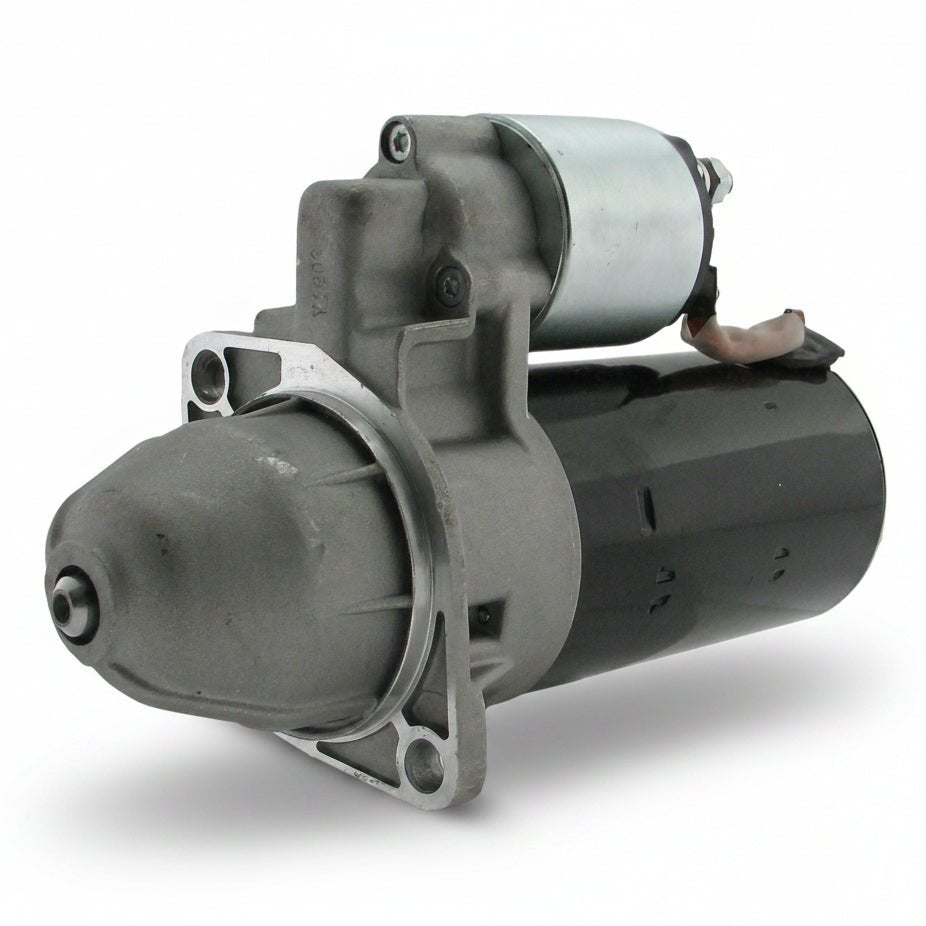

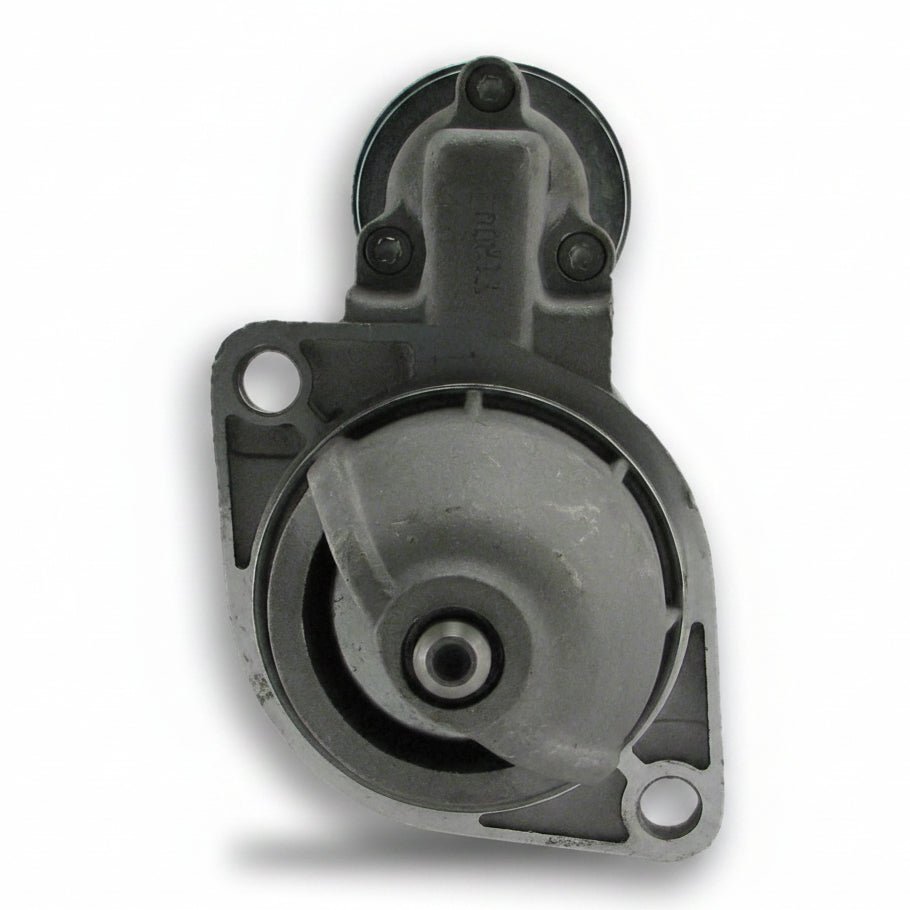

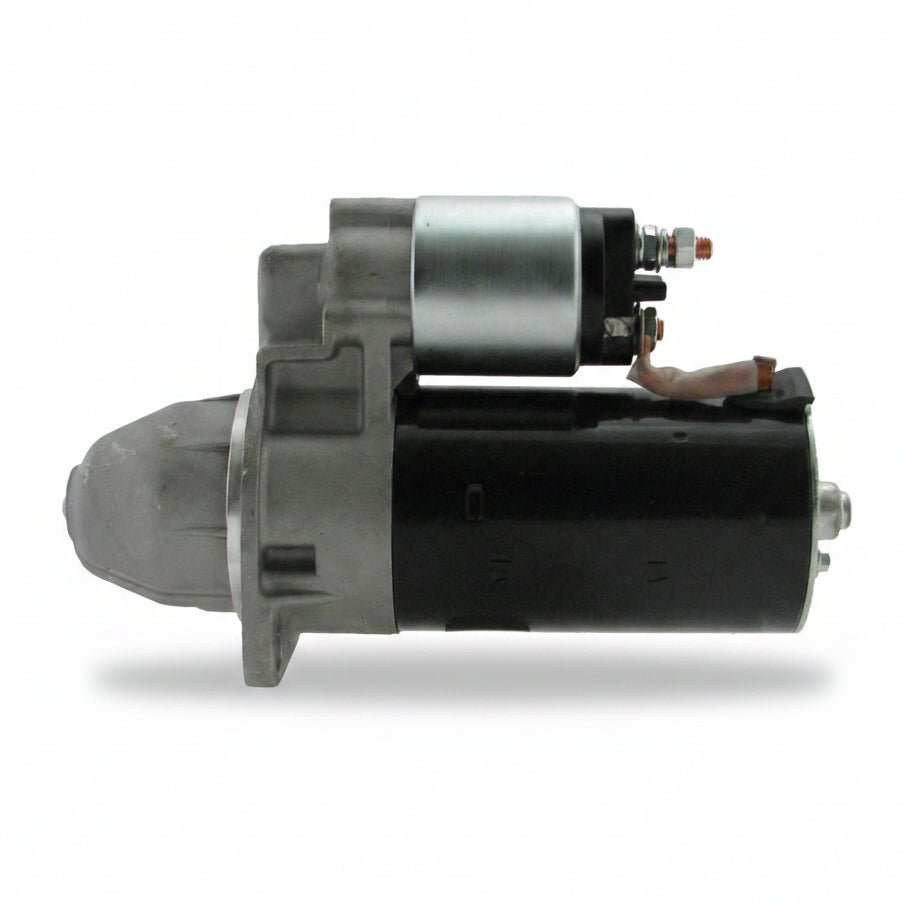

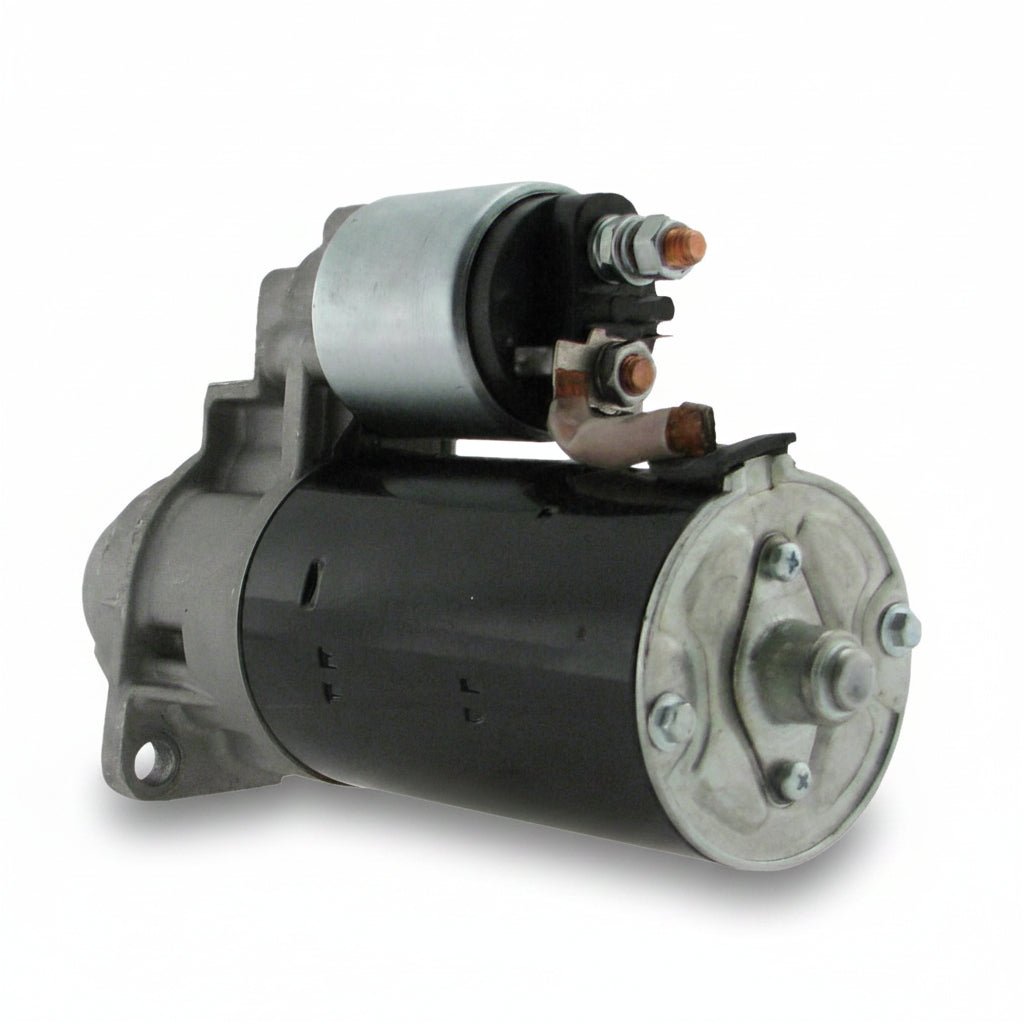

• 1× Starter Motor 12V / 9T PMGR CW 1.6kW (0001109009) — New Aftermarket

🔑 Key Specs

• Bosch Part Number: 0001109009
• Voltage: 12V
• Power: 1.6kW / 2.14HP
• Pinion Teeth: 9T
• Rotation: Clockwise (CW)
• Type: PMGR (Permanent Magnet Gear Reduction)
• Weight: 8.25 lbs / 3.75 kg
• Compatible Engines: Lombardini 7LD665F / 7LD740F / 8LD740.2 / 9LD561.2 / 9LD625.2 / 904 / 914 / L20 diesel
• Compatible Equipment: Lombardini-powered industrial equipment / Arctic Cat 700 Diesel ATV (2007–2008)
• Condition: New Aftermarket
• SKU: 0001109009

⚠️ Please verify your engine model, year, and existing starter part number before purchasing. Contact us with your engine serial number if unsure.
